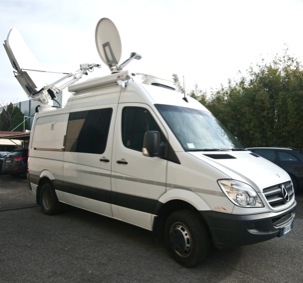

UP LINK UNIT HD           NEW




UP LINK  hd ITA 549
MERCEDES 515 CDI

:: ANTENNA INTELSAT, EUTELSAT,  ASIASAT APROVED:
ERA mod. 15KU Diamond Reflector da 1,5 mt
offset w Rx/Tx Gain 43.7dBi@11.7GHz 45.5dBi@14.0GHz
HPA 2x 400 Watt TWTA NDSATCOM HPA 3413 BUC EIRP 70 dBW max

::TRIPLE VIDEO ENCODING CHAIN:                2 Ateme Kyrion CM 5000 DVB-S/S2 QPSK/8-16-32 PSK Mod. Mpeg-4 Mpeg-2 4.2.0 8bit 4.2.2 8-10 bit
1 Tandberg E5740 VOYAGER QPSK Modulation

3 IRD: 2 Ateme Kyrion DR 5000 DVB-S/S2 QPSK/8-16-32 PSK Mod. Mpeg-4 Mpeg-2 4.2.0 8bit 4.2.2 8-10 bit
1 Tandberg tt 1260 DVB-2/S2 QPSK/8PSK

:: SPECTRUM ANALYZER ROHDE&SCHWARZ R&S FSH3
:: WAFORM MONITOR VIDEOTEK VTM

::TELECAMERE/CAMERAS
3 TELECAMERE TRIAX HD Sony HXC 100

::OTTICHE/LENS
OTTICHE FUJINON 15X8,5
OTTICHE FUJINON 55X9
OTTICHE FUJINON 4,8X

::CAVALLETTI/TRIPODS
FL22 CARTONI
SACHTLER T10
VINTEN 10

:: MIXER VIDEO/SWITCHER
Blackmagic Atem television Studio
:: VIDEO PROCESSING
Blackmagic Teranex Processor

::AUDIO/SOUND
1 MIXER SOUNDCRAFT FX 16ii
:: INTERCOM 4 porte, 2 Beltpack
:: IBRIDI 2Gsm,1 Isdn, 2Rtg (AVT)

:: EDITING SUITE
FINAL CUT
1 MAC BOOK PRO 17”
MATROX MX02LE

::MATRICE AUDIO-VIDEO/ROUTING SWITCHER HD
Network HD SDI 16x16  e Audio 16X16

::VIDEOREGISTRATORI/VTR
- AJA KIPRO
- 2 IMX 2000
- 1 DIGI BETA
- 1 XDCAM IMX 50
- Videoserver BLT 2Channel
- Memory Card Portable Recorder
  P2 AG - HPG20P

:: EDITING SUITE
FINAL CUT
1 MAC BOOK PRO 17”
MATROX MX02LE

:: POWER GENERATOR
FISHER PANDA da 12kVA
UPS ASTON Energy da 10kVAmailto:43.7dBi@11.7GHzshapeimage_2_link_0
